HYDRONIC HEAT SYSTEM STORAGE TANK

SPECIFICATIONS:

DIMENSIONS: 4 FT X 4 FT X 8 FT

WEIGHT (EMPTY): 1700 LB

WEIGHT (FULL): 9700 LB

CAPATICY: 957 GALLONS

HEAT STORAGE: 480,000 BTU (APPROX.)

WATER TEMPERATURE

RANGE: 120ºF – 180ºF

CONSTRUCTION: 1/4 “ A-36 CARBON STEEL PLATE, WITH 3/8” STIFFENERS, SEAL WELDED CONSTRUCTION

PRIMARY COIL

(LOADING COIL): 105 FT OF ¾” TYPE K COPPER TUBING WITH (2) ¾” N.P.T. STAINLESS STEEL CONNECTIONS

SECONDARY COIL

(REMOVAL COIL): 90 FT OF ¾” TYPE K COPPER TUBING (2) ¾” N.P.T. STAINLESS STEEL CONNECTIONS

INSTRUMENTATION: (2) HONEYWELL GT162 2 ½” THERMOMETER 32ºF – 250ºF RANGE

INSULATION: 4” THICK – 3 LB/FT³ DENSITY FIBERGLASS WITH WHITE CRAFT ASJ FACING (ASJ - ALL SERVICE JACKET)

CONSTRUCTION DETAILS:

(CLICK ON THE THUMBNAILS BELOW FOR FULL SIZE PICTURES)

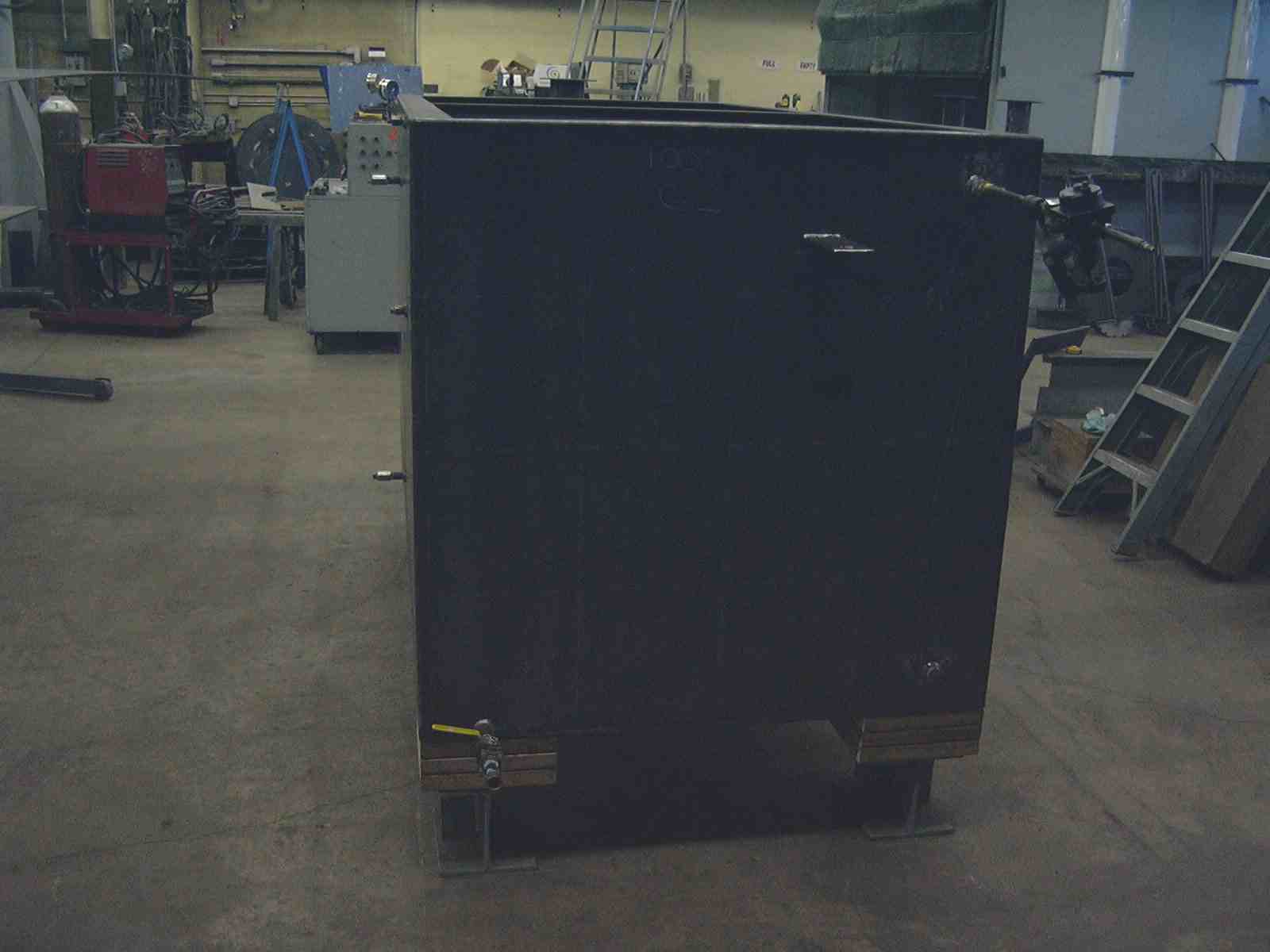

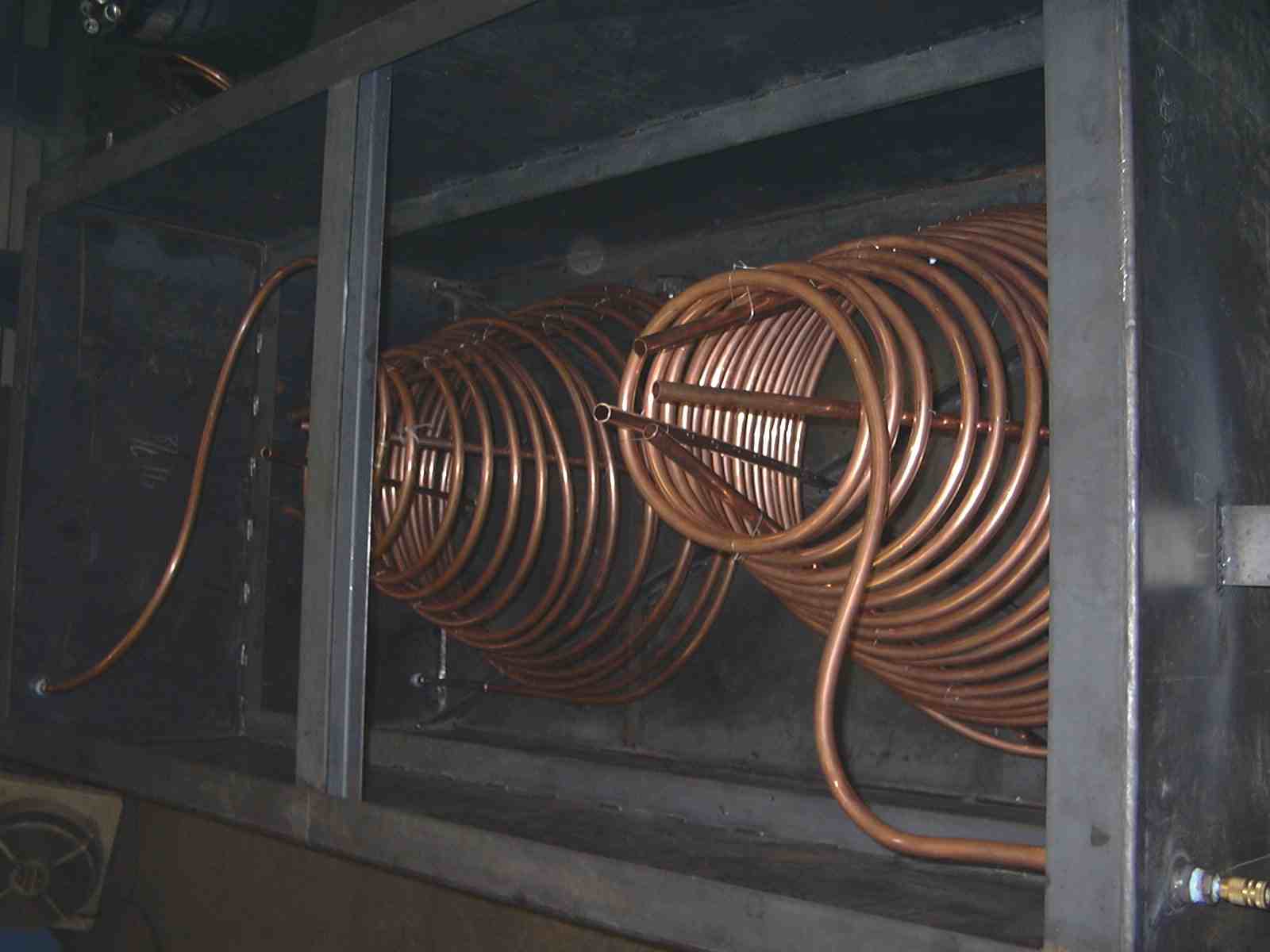

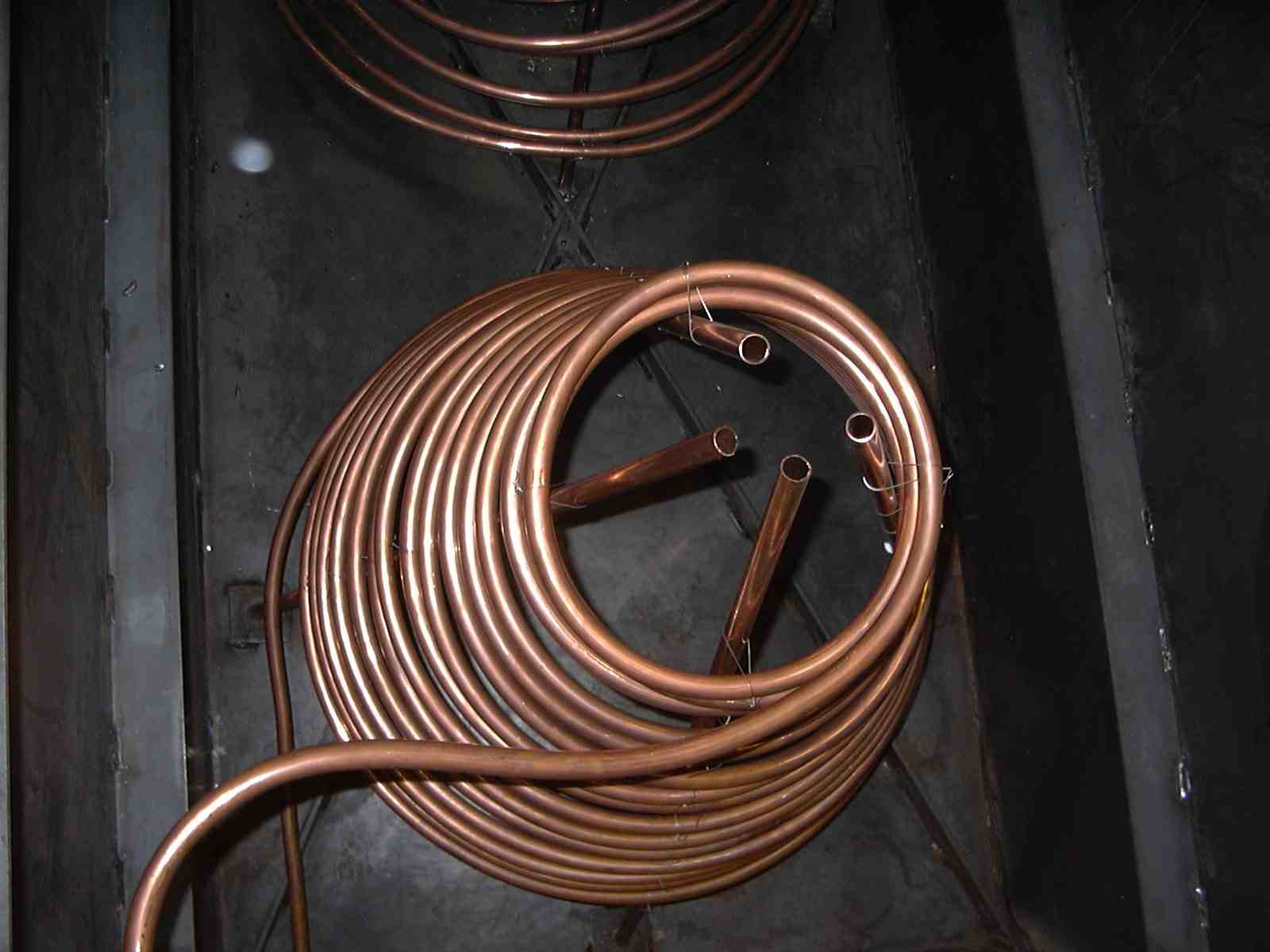

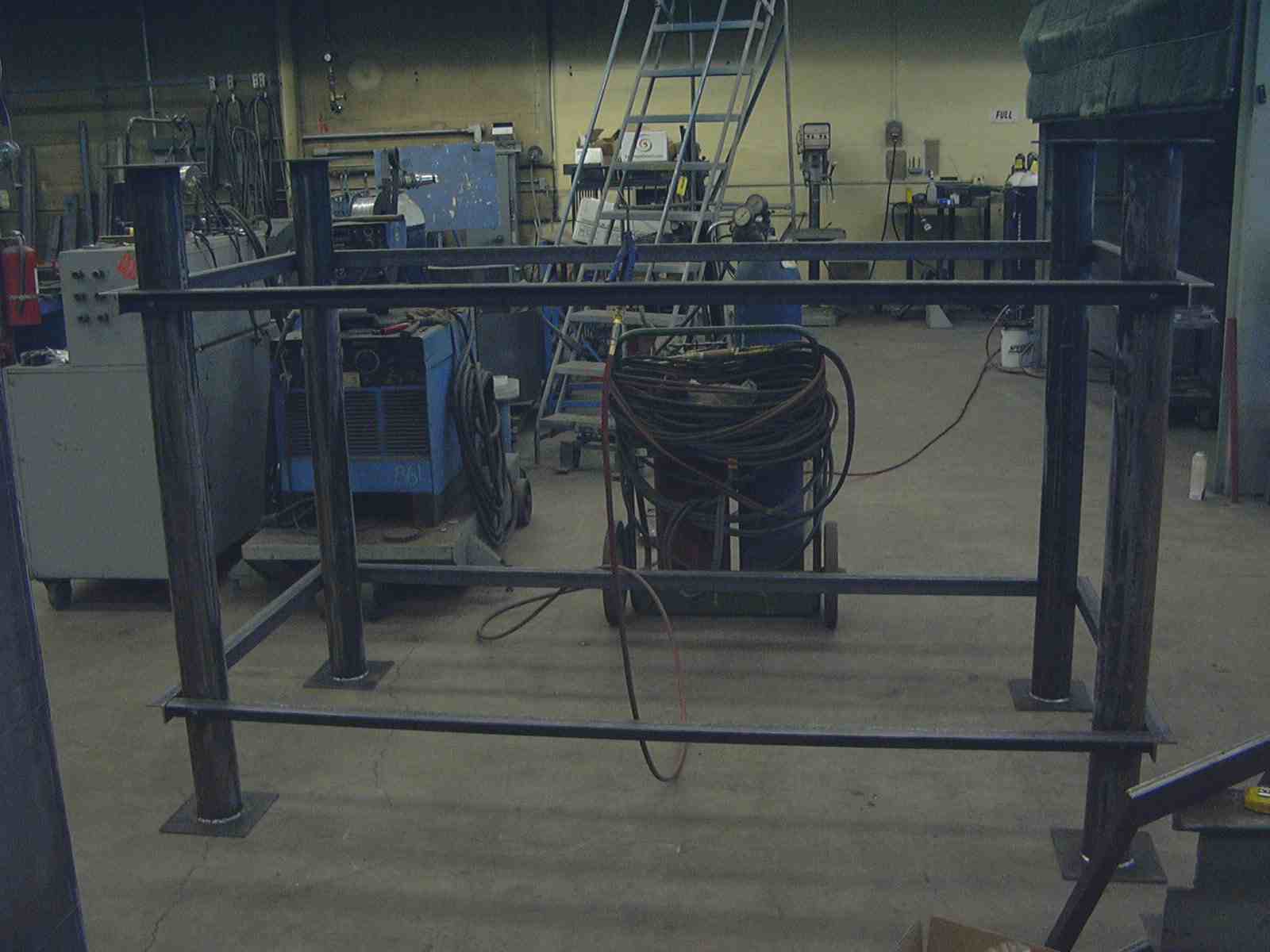

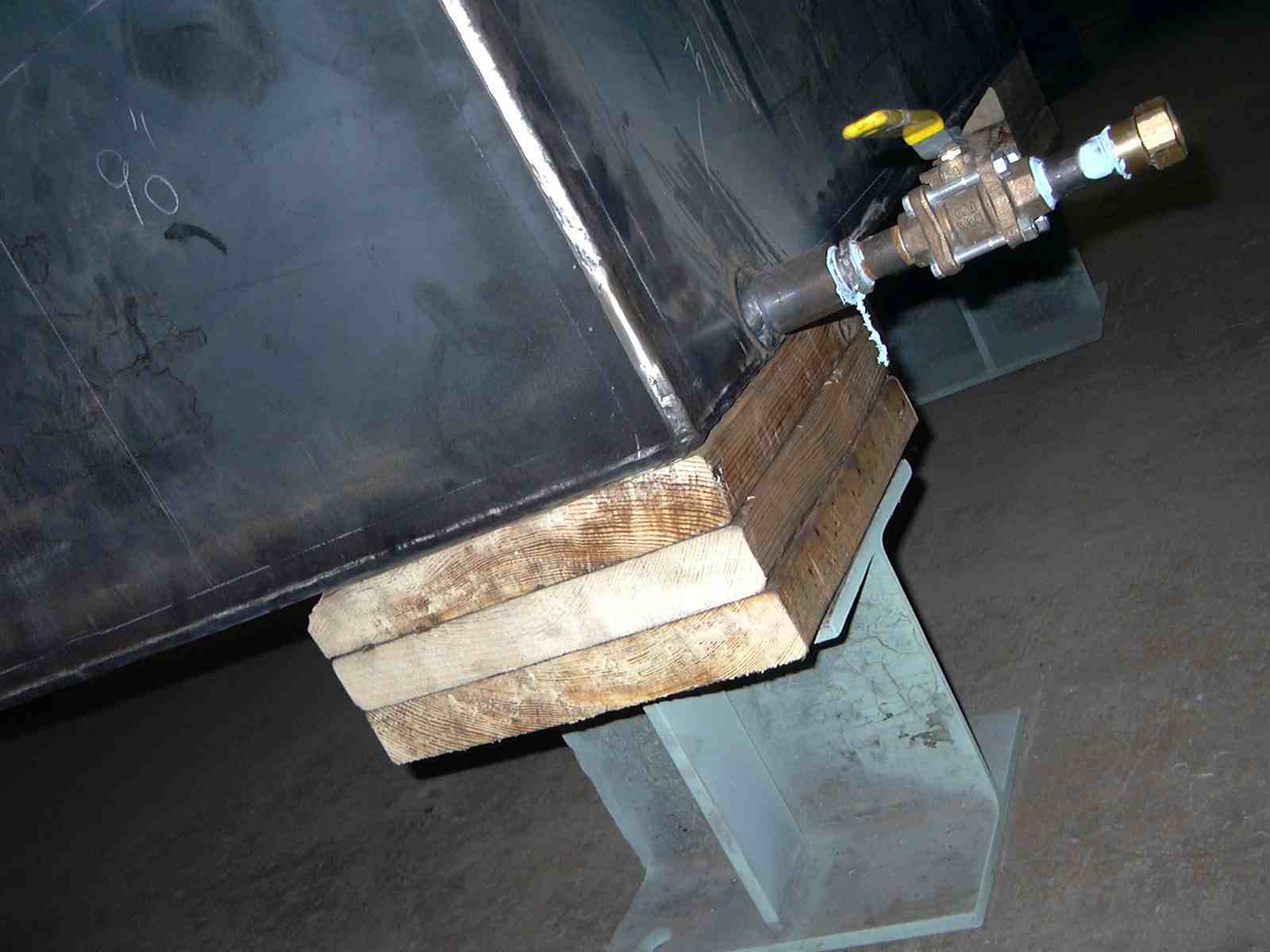

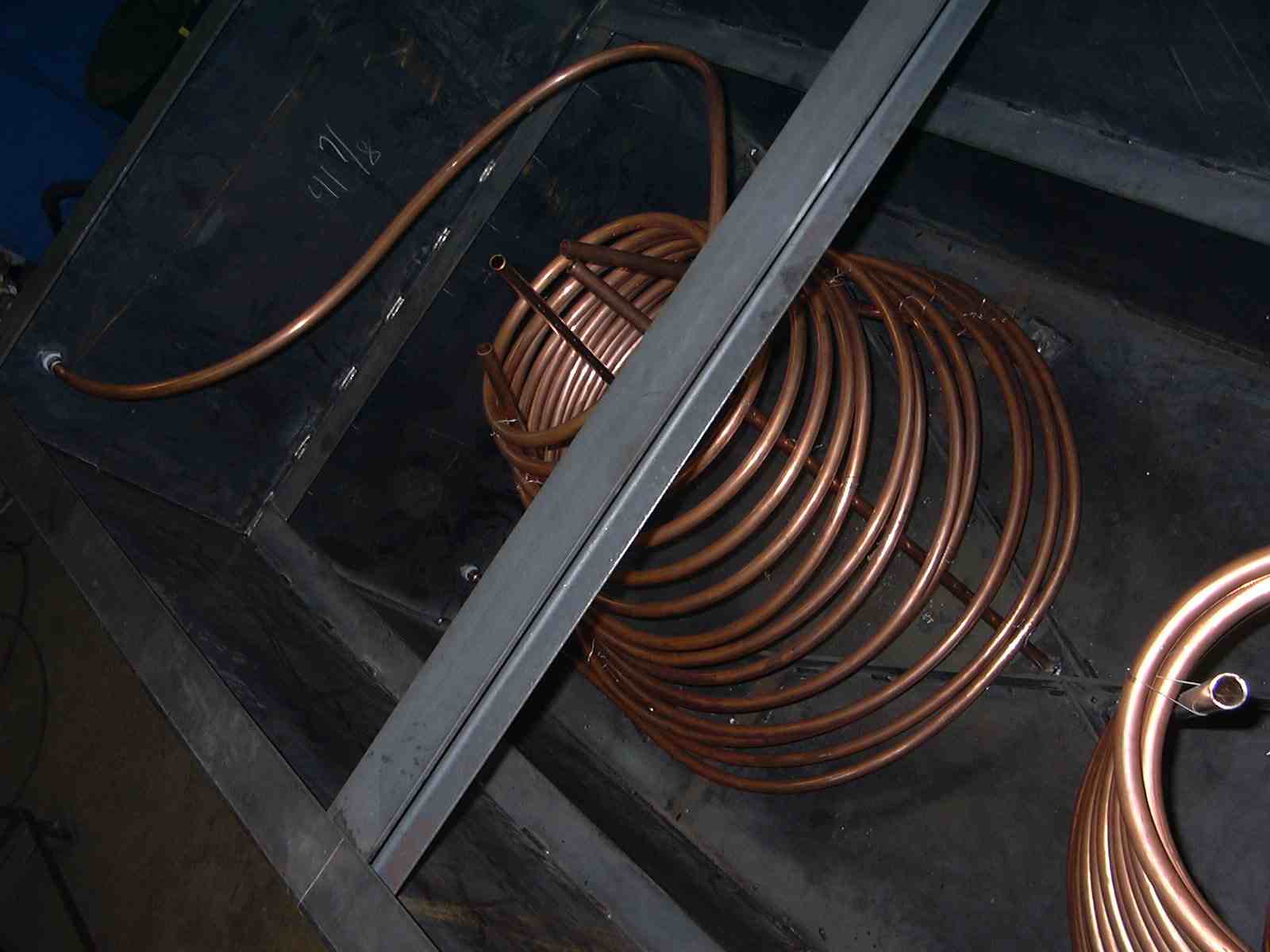

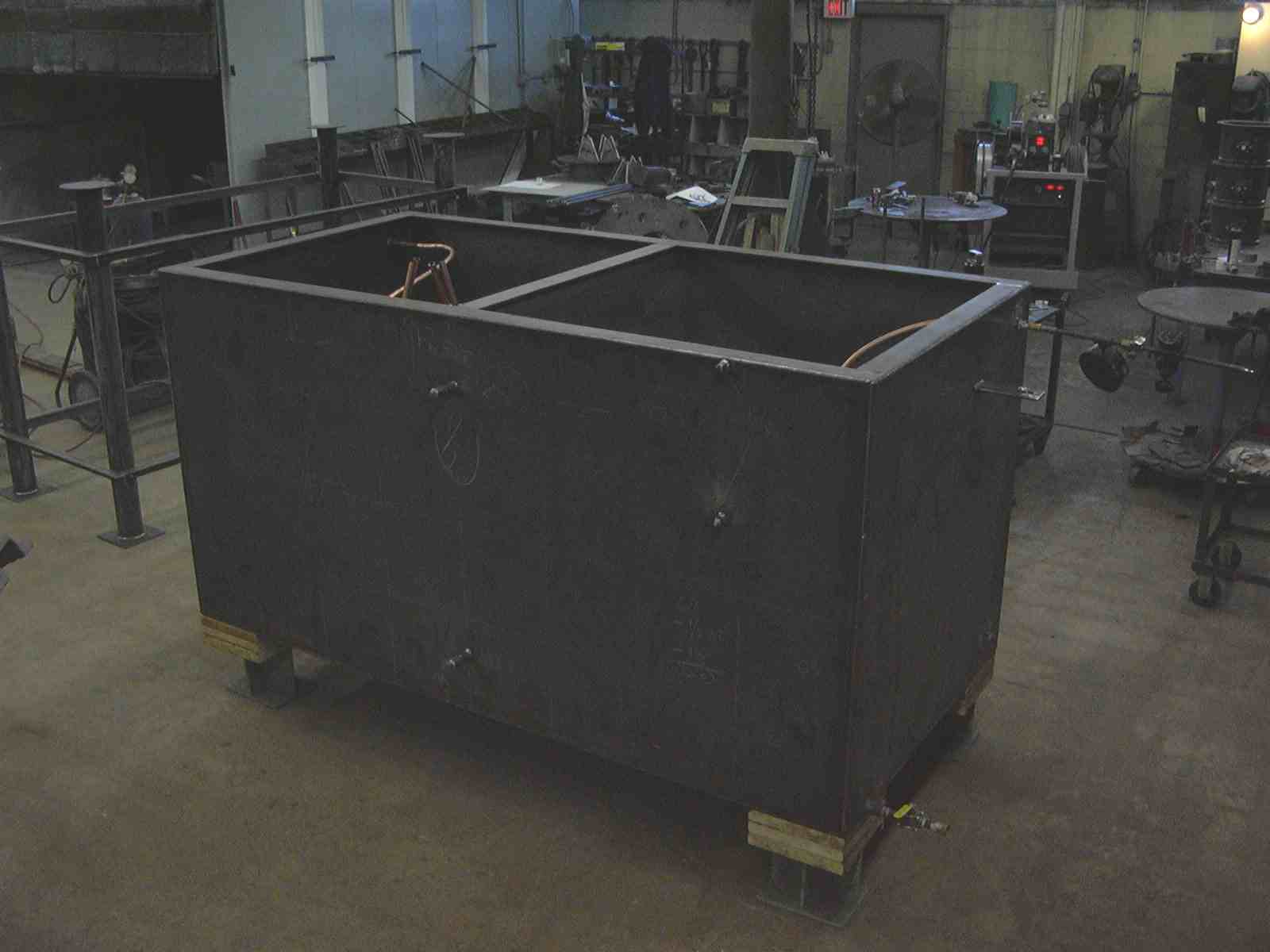

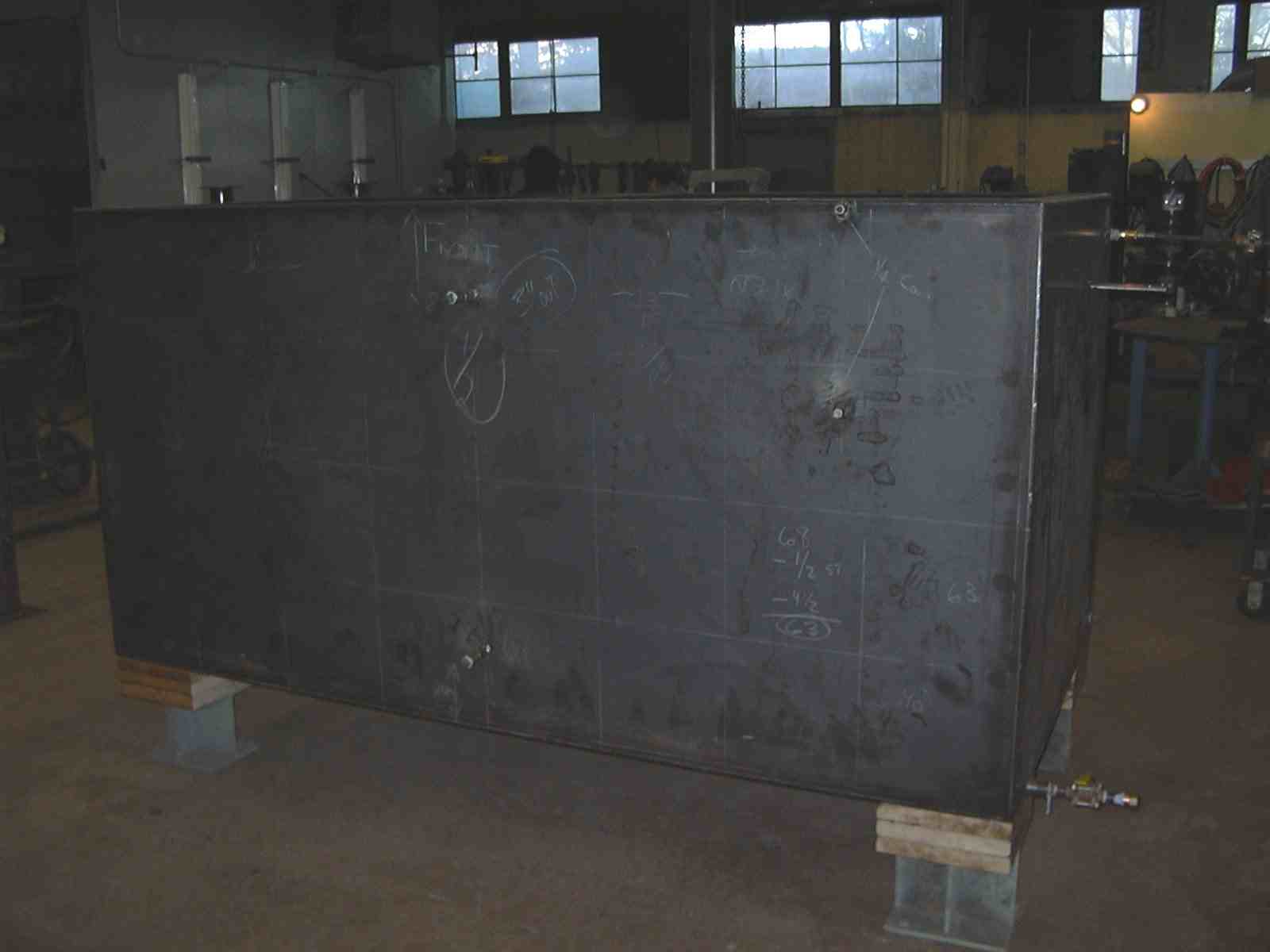

(Front) (Isometric) (Right End) (Coil Top) (Coil Detail) (Coil Detail) (Isolating Support) (Tank Support – For Overhead Mounting)

INSULATION DETAILS:

(CLICK ON THE THUMBNAILS BELOW FOR FULL SIZE PICTURES)

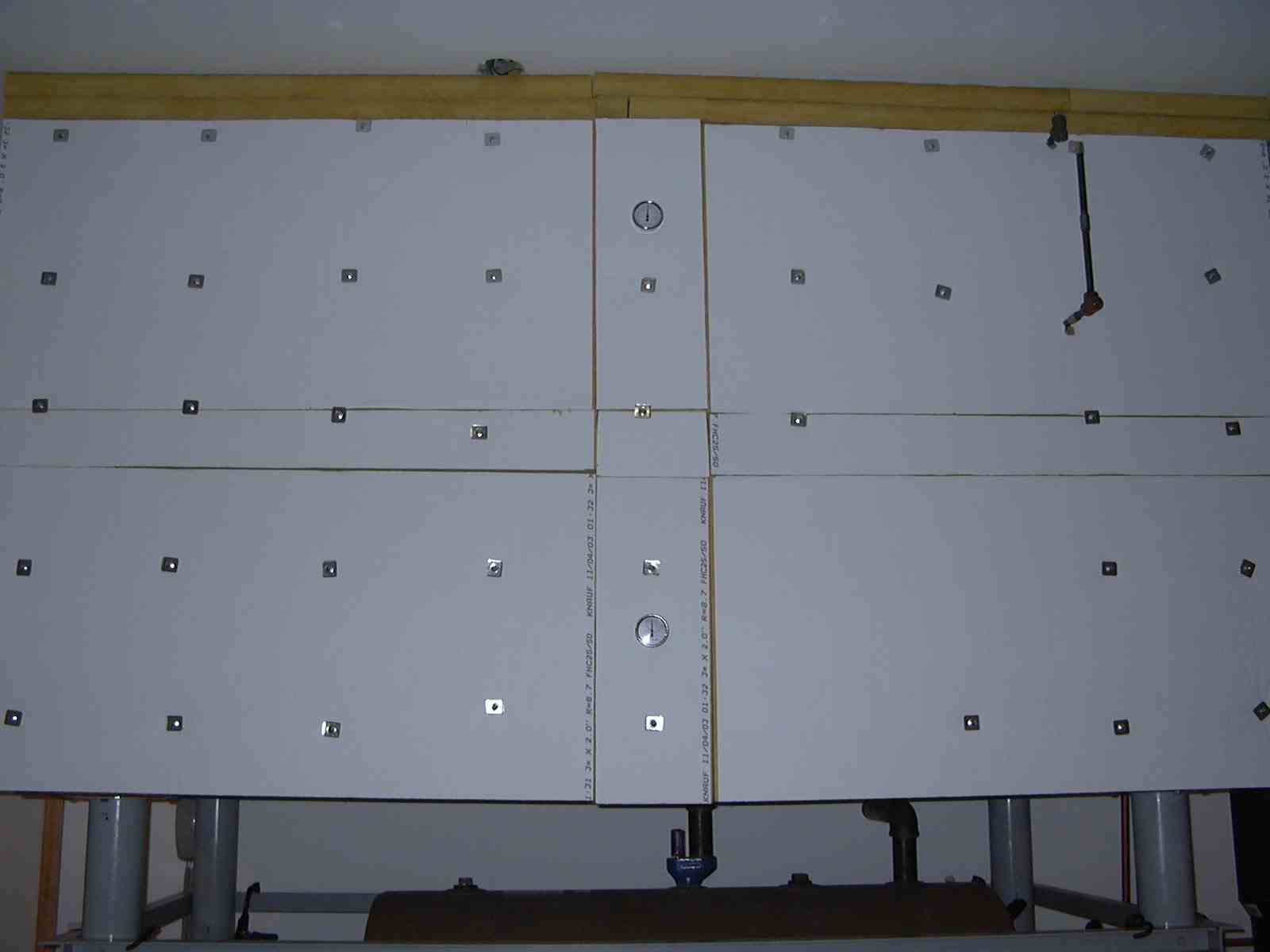

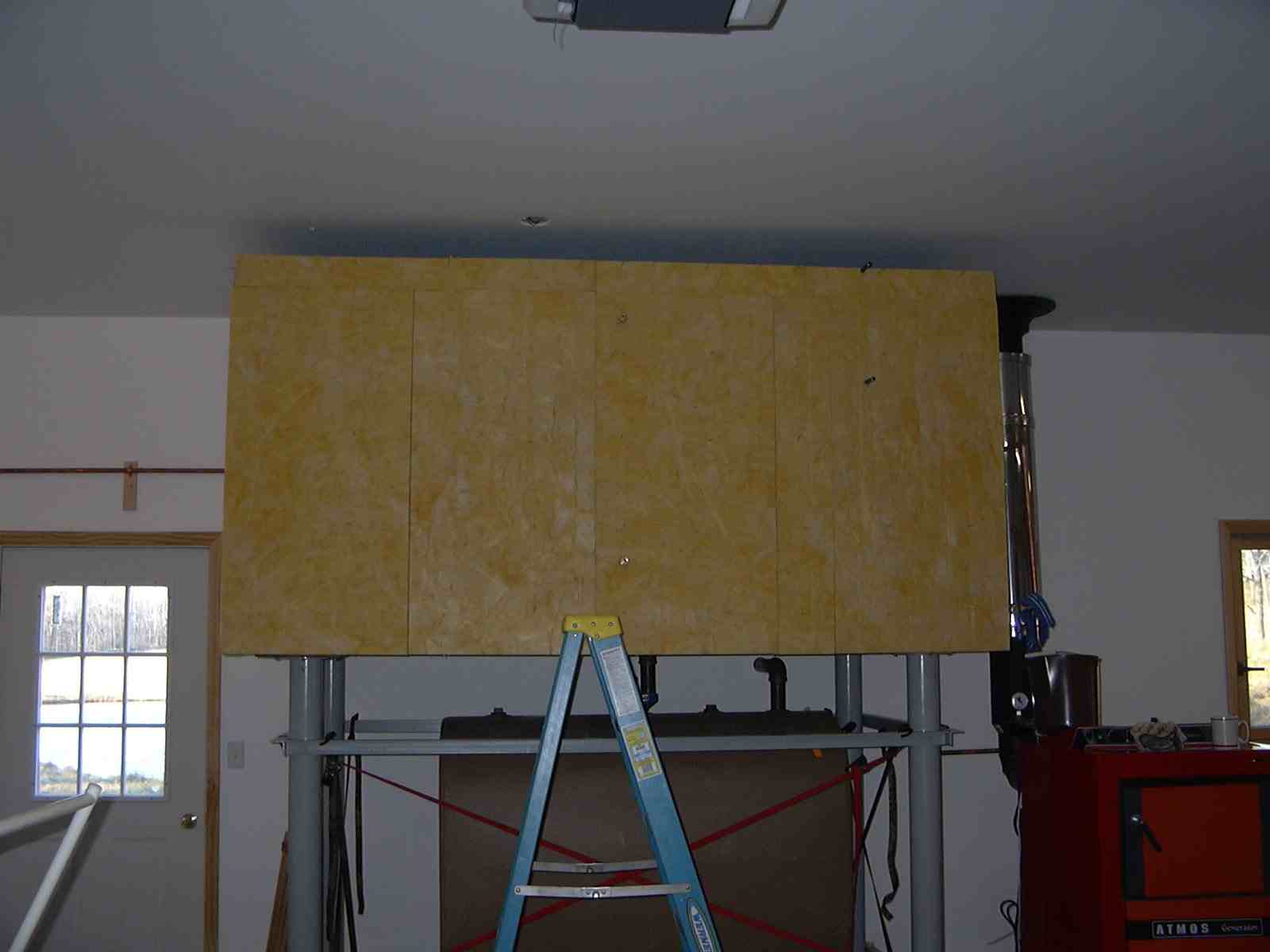

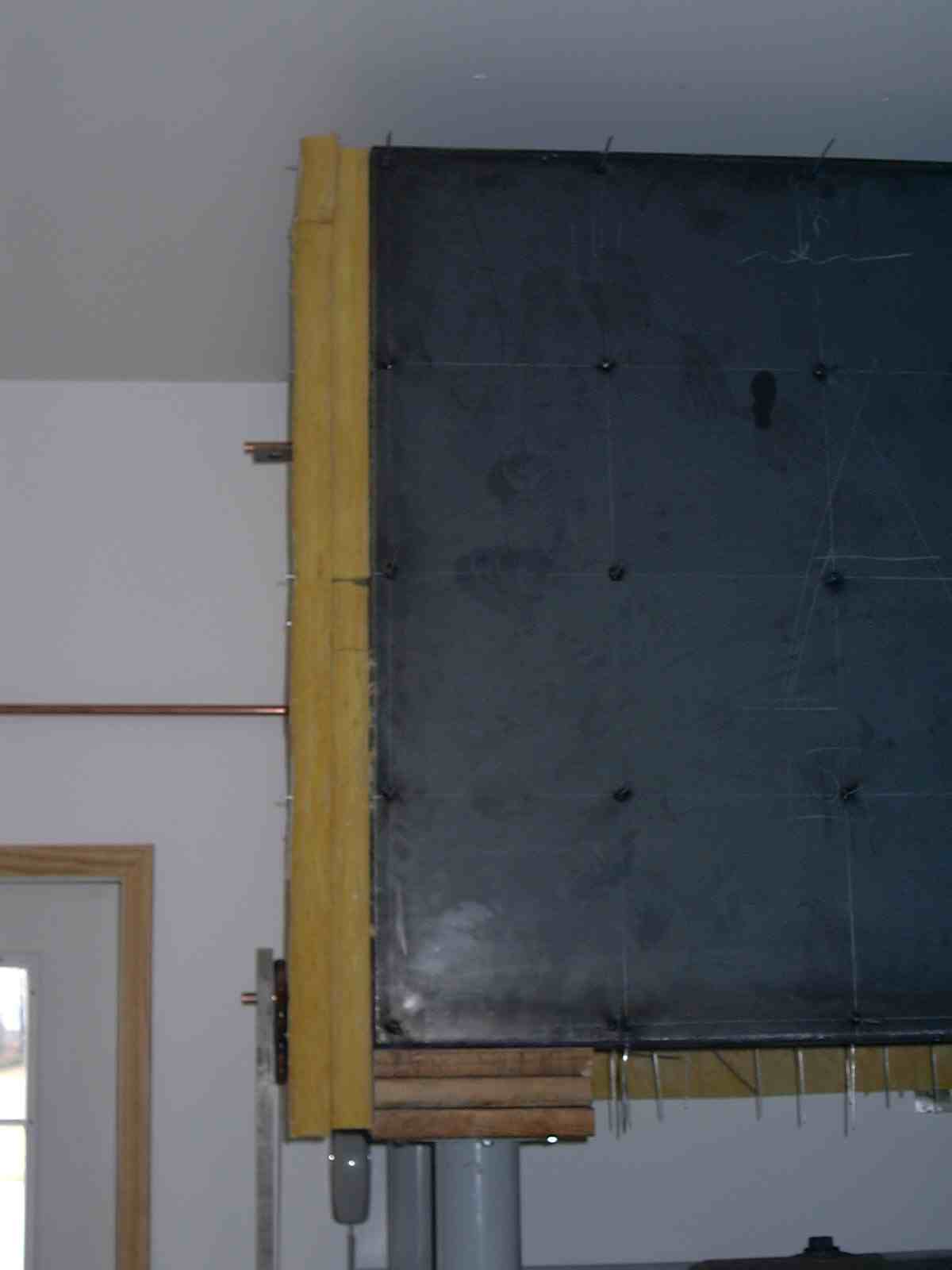

(End) (Front - First Layer) (Front – Second Layer)

The tank was covered with two 2 inch thick layers of fiberglass insulation. The seams were staggered to minimize heat loss. The second layer of insulation has a white heavy Kraft paper “all-service-jacket). The seams and insulation keepers will be taped next to finish the insulation job.

OPERATION:

Took 3 ½ wheelbarrow loads of wood to bring the tank water temperature up to 150ºF for the first time. Since then, I have been firing the boiler when the tank temperature falls below 130ºF and letting the fire die down or go out when the tank temperature is at or above 170ºF.
